OEM Remote Start Removal Procedure

Lexus IS250/350 2014-15

Uninstall OEM Remote

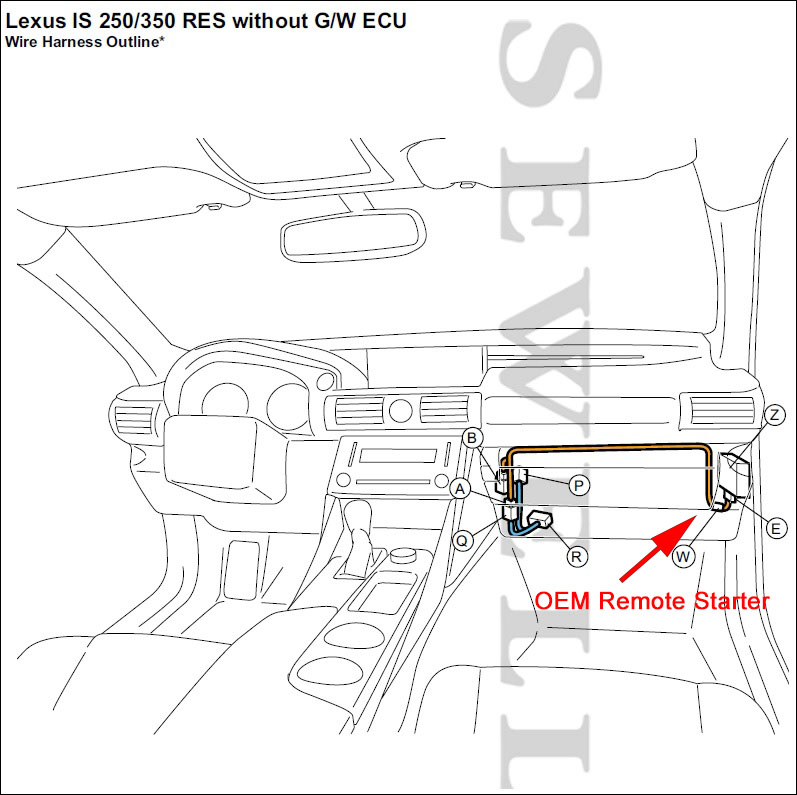

Component and harness location

Step 1
Remove Glove Box and Passenger side dash trim. There are 2 configurations depending on whether or not the vehicle is equipped with a network gateway.

Step 2 - FOR NON GATEWAY MODELS

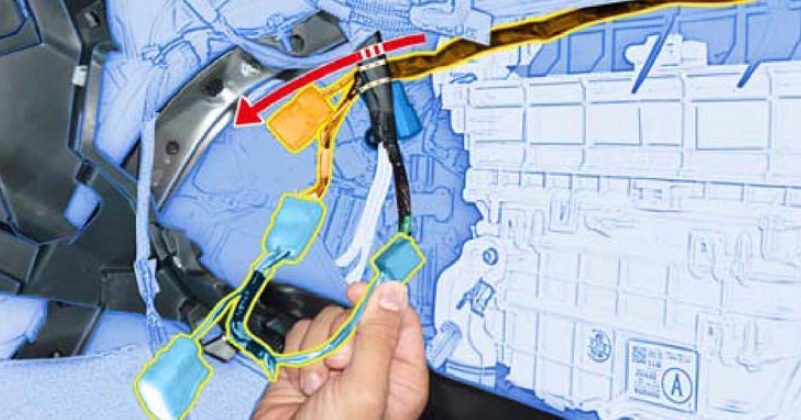

Follow the harness from the RSU to the side of the center console. unplug the RSU t-harness and reconnect the factory connectors together.

Step 3 - FOR GATEWAY EQUIPPED MODELS
Follow the harness from the RSU to the side of the center console. unplug the RSU t-harness and reconnect the factory connectors together. Pay attention to disconnect the second t-harness as well.
